Review the listed configuration, connection interfaces, installation space, operating workflow and maintenance access for this product. Confirm the final scope against the actual project before selection.
TechnicalParameters

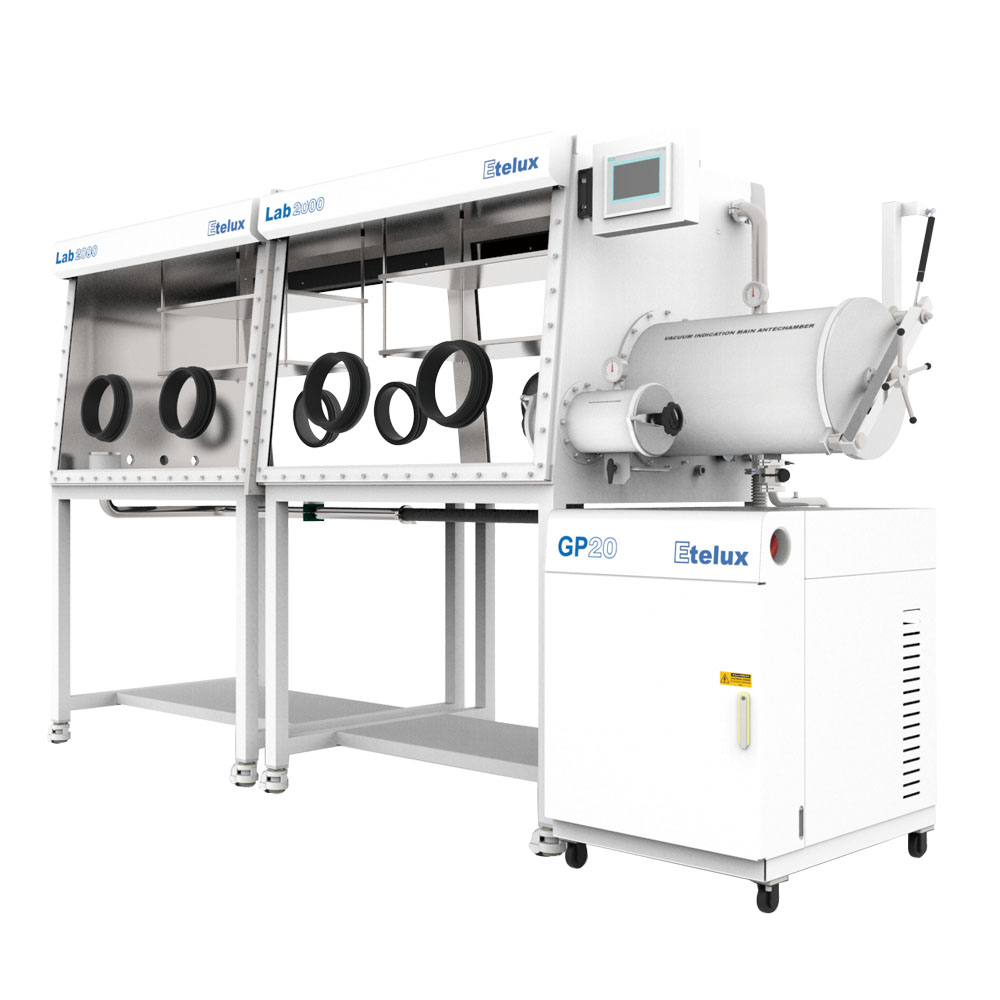

Chamber
Description
Material: Stainless steel 1.4301 (SUS type 304); Thickness 3 mm;Dimensions: 2 4 0 0 mm(94.5″) x 750mm(29.5″)x 900mm(35.4″) L x W x H
Volumn
0.8 m³(28.2cu)
Front window
Panel: 8 mm thick safety tempered glass or 10 mm thick polycarbonate (optional);Dimensions: 1123mm (44.2″) x 839mm (33.0″) L x H
Glove port
Hard aluminum alloy material or polyoxymethylene material (optional); Glove port diameter: 220 mm (8.7″); O-ring seal
Gloves
Material: Butyl rubber; Thickness: 0.4 mm or 0.8 mm (available for selection)
Filter
Outlet and inlet filters, filter rate<0.3μm
Illumination
LED lighting is located on the top of the front window
Leak rate
Final acceptance test according to the standard of leakage rate <0.05 vol% / h
GP20 Gas Purification System
Description
Automatic removal of H2O and O2; single purification column system, automatic regeneration (optional GP200 double purification column); closed gas circulation line
Use voltage
AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (Available for selection)
Working gas
Working gas：N2、Ar 、He(purity≥99.999%)；Regeneration gas：H2 accounts for 5% -10%, the rest is working gas (purity ≥99.999%)
Vacuum pump
Specifications: Rotary vane vacuum pump, equipped with oil mist filter, with gas ballast control; flow rate: 12 m³ /h (7 cfm), vacuum degree < 2 x 10-3 mbar (dry pump optional)
Circulation unit
Oil-free high-speed fan; air volume: 0-100 m³ / h (0-59 cfm)
Valve
Electromagnetic high vacuum valve
Leak rate
Final acceptance test according to the standard of leakage rate <0.05 vol% / h
Cleaning system
Description
After setting the corresponding time and pressure, the system can automatically perform gas replacement in the chamber.
Analyzer
Oxygen analyzer
Size
205 mm（8.1″） x 80 mm（3.1″） x 60 mm（2.4″）L x W x H
Measurement range
0-1000 ppm
Other oxygen transmitter
GE oxy.IQ™ Oxygen Transmitter
Dew analyzer
Size
205 mm（8.1″） x 80 mm（3.1″） x 60 mm（2.4″）L x W x H
Measurement range
0-500 ppm
Other watertransmitter
GE VeriDri™ Dew-Point Transmitter
Solvent purification system
Leak rate
Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mmInternal size: 220mm (8.7″) x 450mm (17.7″) Φ x HHigh-quality activated carbon
Optional equipment
Refrigerator
Independent control system, integrated in the side panel of the chamber, temperature -35 ℃, volume 18L or 32L optional; main chamber 304 stainless steel sheet, 5 layers of variable compartments R404 environmentally friendly refrigerant, imported
Heating chamber
The main antechamber is equipped with a heating system with a temperature of 200 ℃ and a temperature control of ± 1 ℃
Other instructions
Productcertification
ISO9001 certification, CE certification, UL certification
Warranty
One-year warranty period, lifetime maintenance
Applicationconsiderations
For details, please refer to the instruction manual danger, warning, caution, etc
The gloveboxhas beautiful design, compact structure and fine workmanship;
Theinert gasin the glove box is circulated in a closed cycle by a circulation fan and a purifier, continuously absorbing O2and H2O;
TheH2O and O2removal materials can be regenerated, and the regeneration process is automatically controlled by the program;
Using thelatestEuropean technology, all key components are imported from Europe, from world-renowned manufacturers;
The controlsystemincludes self-diagnosis, power-off and self-starting features, pressure control and adaptive functions, password protection, and the control unit uses Siemens PLC touch screen;
The water analyzer has strong corrosionresistanceand wide application fields, especially for users of lithium battery manufacturing and metal organic, etc., it can be cleaned for 3 times and reused repeatedly, avoiding the problem of scrapping once pollution;
The oxygen analyzeruses the ZrO2 sensor to avoid the problem of short life of the fuel cell and continuous exposure to the air;
The useofintegrated valve structure reduces and optimizes the system pipeline layout, reduces leakage points, simplifies the leak detection link, and the use of products is more stable and reliable;
The equipmentruns stablyand can run continuously for 7 × 24h;
Automatic control, simple operation, low operation and maintenance cost;
Specialized, standardized and large-scale production of all parts of the glove box;
Provide products for customers with various special requirements;
All parts have been strictly audited and controlled;
Rich design and control experience;
Theproduction process is strictly based on the ISO9001 standard;
High-precision modern test methods, helium mass spectrometer leak detection for key links in the production process, to ensure that the product quality is foolproof;
Sophisticated technical team to achieve continuous improvement and improvement of products;
Perfect after-sales service system and rich after-sales service experience, setting up service organizations in Beijing, Shanghai, Guangzhou, Wuhan, Chengdu, Xi’an, Changchun and other places can achieve fast and thoughtful after-sales service.
