Lab2000 Series Standard 2400 Integrated Single-Sided Glove Box

  • Stainless steel enclosure design, tempered glass or polycarbonate front window(optional);
  • Specifications: Water, Oxygen ≤1ppm; Leakage rate: ≤0.05vol%/h;
  • Modular design of solenoid valves reduces leakage and facilitates replacement;
  • Large transition chamber with sliding tray, uniquely designed transition chamber door that is lightweight and easy to open;
  • GP-20 inert gas purification system; SIEMENS microcontroller;
  • SIEMENS touch screen for easy access to functions;
  • Data memo: Automatically records system data;
  • Closed-loop gas circulation, oil-free and vacuum;
  • Foot pedal pressure control instead of manual adjustment;
  • All stainless steel gas flow piping and fittings;
  • EDWARDS RV12 vacuum pump;
  • HEPA high-efficiency filter;
  • Automatic pressure control, working pressure settable within ±12mbar range;
  • Height-adjustable stand;
  • Adjustable casters for easy movement; Lampshade with anti-reflective coating;

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

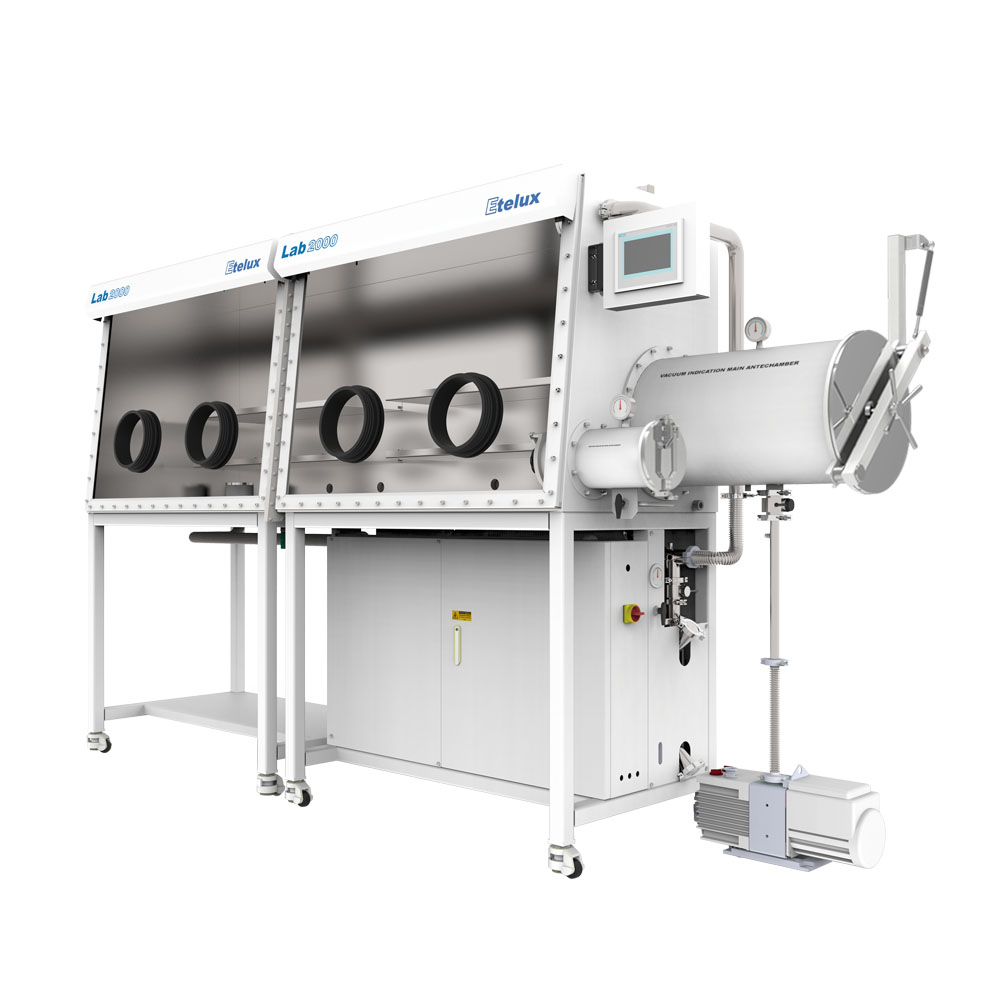

Lab2000 Series Standard 2400 Integrated Single-Sided Glove Box

[wpforms id=”1190″ title=”true” description=”Request a call back”]
Technical Parameters
Glove Box

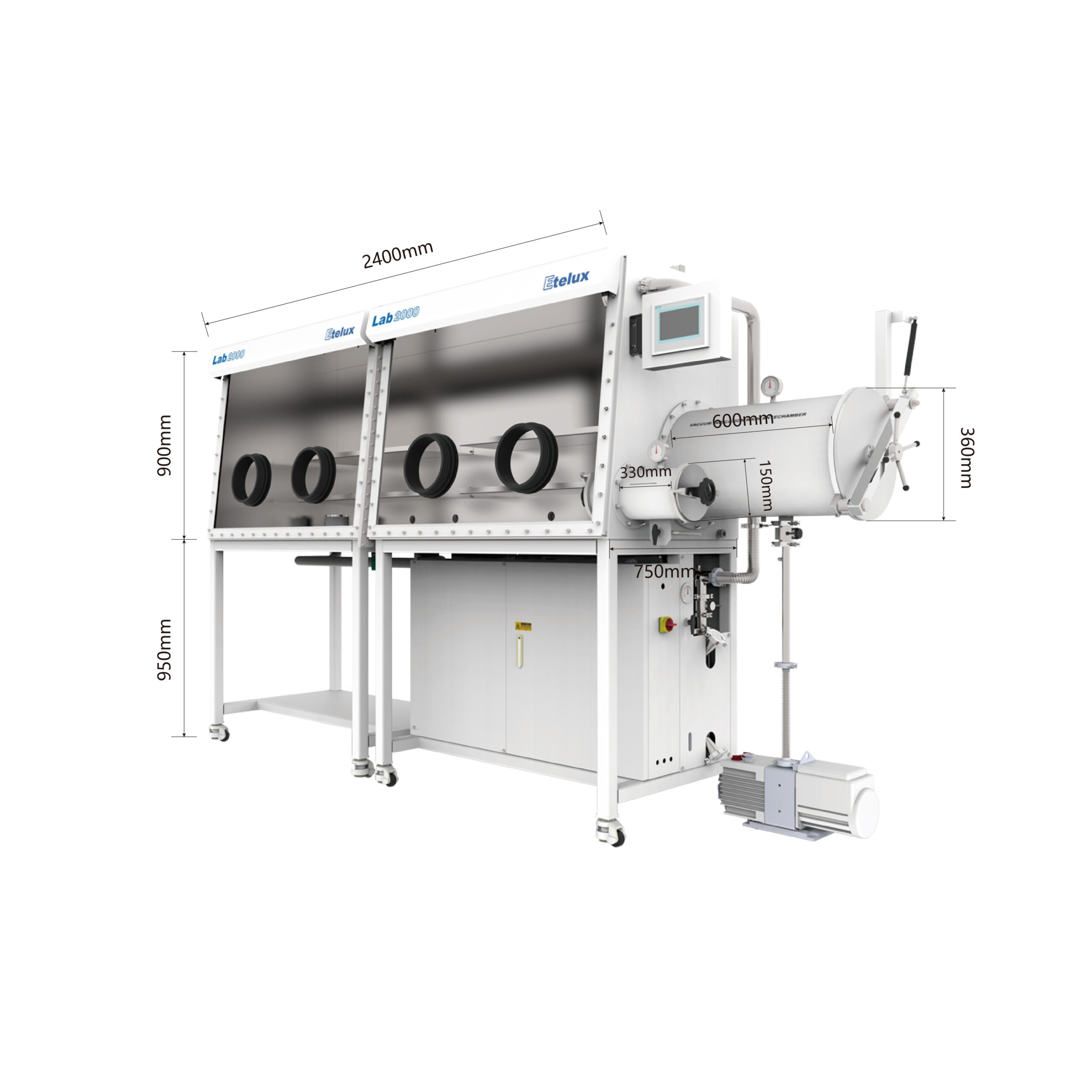

 Describe Material: Stainless steel 1.4301(SUS type 304), thickness 3mm.Dimensions: 2400mm (L) x 750mm (W) x 900mm (H)
 Volume 0.8 m³
 Front WindowPanel: 8 mm thick tempered safety glass or 10 mm thick polycarbonate (optional) Dimensions: 1123 mm (L) x 839 mm (H)
 Glove Caliber Made of hard aluminum alloy or polyoxymethylene (optional), 220 mm diameter, O-ring seal
 Gloves Material: Butyl rubber Thickness: 0.4 mm or 0.8 mm (optional)
 Filter Inlet and outlet filters, filtering <0.3μm
 Illumination LED lighting is located at the top of the front windshield
 Leakage Rate Final acceptance testing will be conducted according to the standard of leakage rate < 0.05 vol%/h
GP20 Gas Purification System
 DescribeAutomatic removal of H2O and O2; single purification column system with automatic regeneration (optional GP200 dual purification column); closed gas circulation pipeline
 Use Voltage AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional)
 working GasWorking gas: N2, Ar, He (purity ≥ 99.999%); Regeneration gas: H2 accounts for 5%-10%, the remainder is working gas (purity ≥ 99.999%)
Vacuum PumpSpecifications: Rotary vane vacuum pump, equipped with oil mist filter and gas ballast control; Flow rate: 12 m³/h (7 cfm), vacuum level < 2 x 10 -3 mbar (dry pump optional)
 Loop Unit Oil-free high-speed fan; air volume: 0 – 100 m³/h
 Valve Electromagnetic high vacuum valve
 Leakage Rate Final acceptance testing will be conducted according to the standard of leakage rate < 0.05 vol%/h
Cleaning System
 Describe Once the appropriate time and pressure are set, the system can automatically replace the gas in the chamber.
Analyzer
   Volume Size205 mm（L） x 80 mm（W） x 60 mm（H）
 Measurement Range 0-1000 ppm
 Other Oxygen Analyzers GE oxy.IQ™ Oxygen Transmitter
   Gloves Size205 mm（L） x 80 mm（W） x 60 mm（H）
 Measurement Range 0-500 ppm
 Other Oxygen Analyzers GE VeriDri™ Dew-Point Transmitter
Solvent Purification System
  Leakage Rate Material: 1.4301 stainless steel (SUS type 304), 3 mm thick; Internal dimensions: 220 mm (Φ) x 450 mm (H); High-quality activated carbon;
Optional Equipment
  Refrigerator Independent control system integrated into the side panel of the cabinet; temperature range-35℃; 18L or 32L capacity available; main body made of 304 stainless steel; 5-layer variable partition; R404 environmentally friendly refrigerant, original import;
Heated ChamberThe large transition chamber is equipped with a heating system with a temperature of 200℃ and a temperature control range of ±1℃.
Other Notes
Product Certification ISO9001 certification, CE certification, UL certification
Warranty Period One-year warranty, lifetime repair
Precautions For details, please refer to the danger, warning, and precaution clauses in the instruction manual
  1. The glove box features an attractive design, compact structure, and fine workmanship.
  2. The inert gas inside the glove box is circulated in a closed loop by a circulating fan and purifier, continuously absorbing oxygen and water.
  3. The deoxygenation material is regenerable, and the regeneration process is automatically controlled by a program.
  4. It adopts the latest European technology, and all key components are imported from Europe from world-renowned manufacturers.
  5. The control system includes self-diagnosis, power-off self-starting, pressure control and adaptive functions, password protection, and the control unit uses a Siemens PLC touch screen.
  6. The water analyzer is highly corrosion-resistant and has a wide range of applications, especially for users in lithium battery manufacturing and metal-organic industries. It can be cleaned three times free of charge and reused, avoiding the problem of being scrapped after a single contamination.
  7. The oxygen analyzer uses a ZrO2 sensor, avoiding the problem of short fuel cell lifespan and continuous exposure to air.
  8. An integrated valve structure is adopted, reducing and optimizing… The optimized system piping layout reduces potential leaks, simplifies leak detection, and ensures greater product stability and reliability.
  9. The equipment operates stably and can run continuously 24/7.
  10. Automatic control simplifies operation and reduces maintenance costs.
  11. Specialized, standardized, and large-scale production of all glove box components.
  12. Products are available to meet various special requirements.
  13. All components undergo rigorous review and control.
  14. Extensive design and control experience.
  15. The production process strictly adheres to ISO9001 standards.
  16. High-precision, modern testing methods are used, including helium buoy leak testing of critical stages during production to ensure impeccable product quality.
  17. A highly skilled technical team enables continuous product improvement and perfection.

Instructions-Standard2400 Integrated Single-Sided Glove Box
