Lab2000 Series Standard 1500 Integrated Single-sided Glove Box

  • Stainless steel chamber design, tempered glass or polycarbonate front window (optional);
  • Index: H₂O, O₂ ≤1ppm; Leakage rate: ≤0.05vol% / h;
  • Solenoid valve adopts modular design, leakage rate is reduced, easy to replace;
  • Main antechamer with sliding tray, unique antechamber door design, light and easy to open;
  • GP-20 inert gas purification system;
  • SIEMENS Microcontroller;
  • SIEMENS operation touch screen, easy to enter various functions;
  • Data memo: Automatically record system data;
  • Closed gas circulation, no oil and vacuum;
  • Foot pedal instead of manual adjustment pressure control;
  • All stainless steel gas flow pipes and accessories; EDWARDS RV12 vacuum pump;
  • HEPA high efficiency filter;
  • Automatic pressure control, working pressure can be set within± 12mbar;
  • Height adjustable bracket;
  • Adjustable casters for easy movement; Lampshade with anti-reflection film;

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

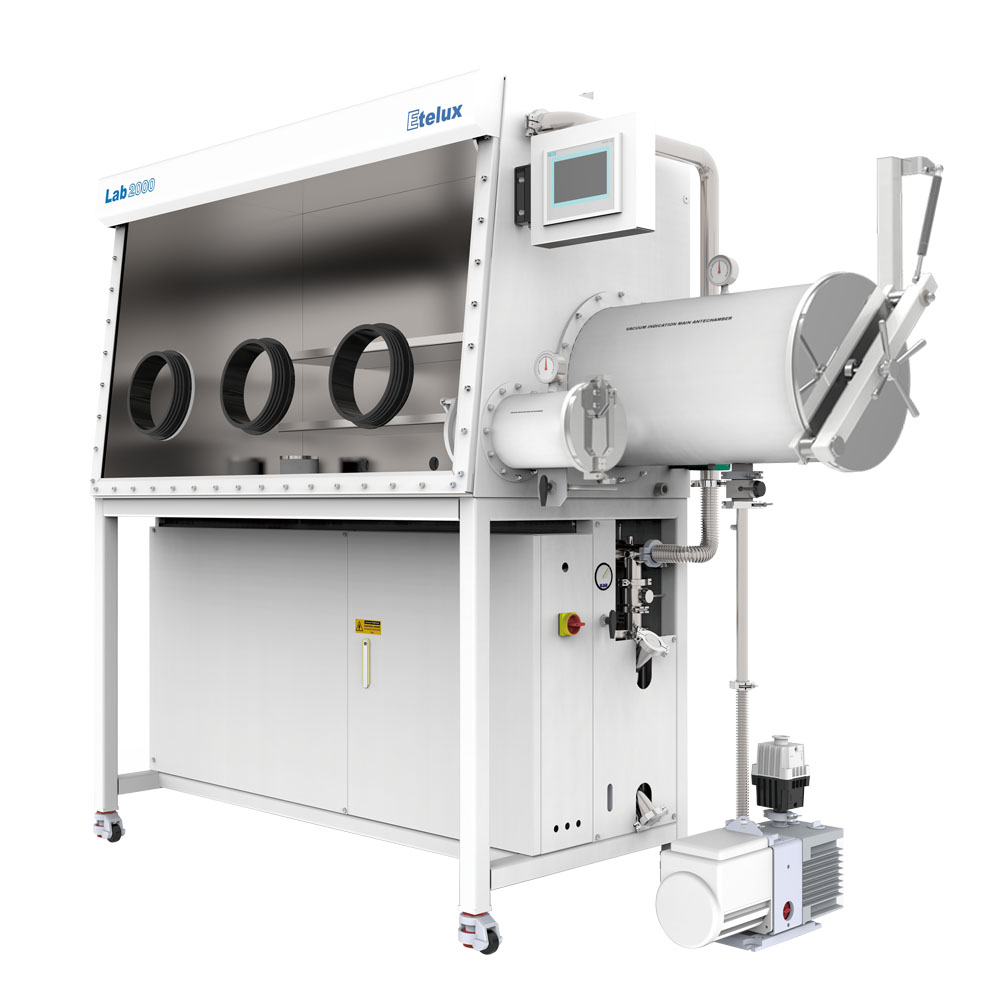

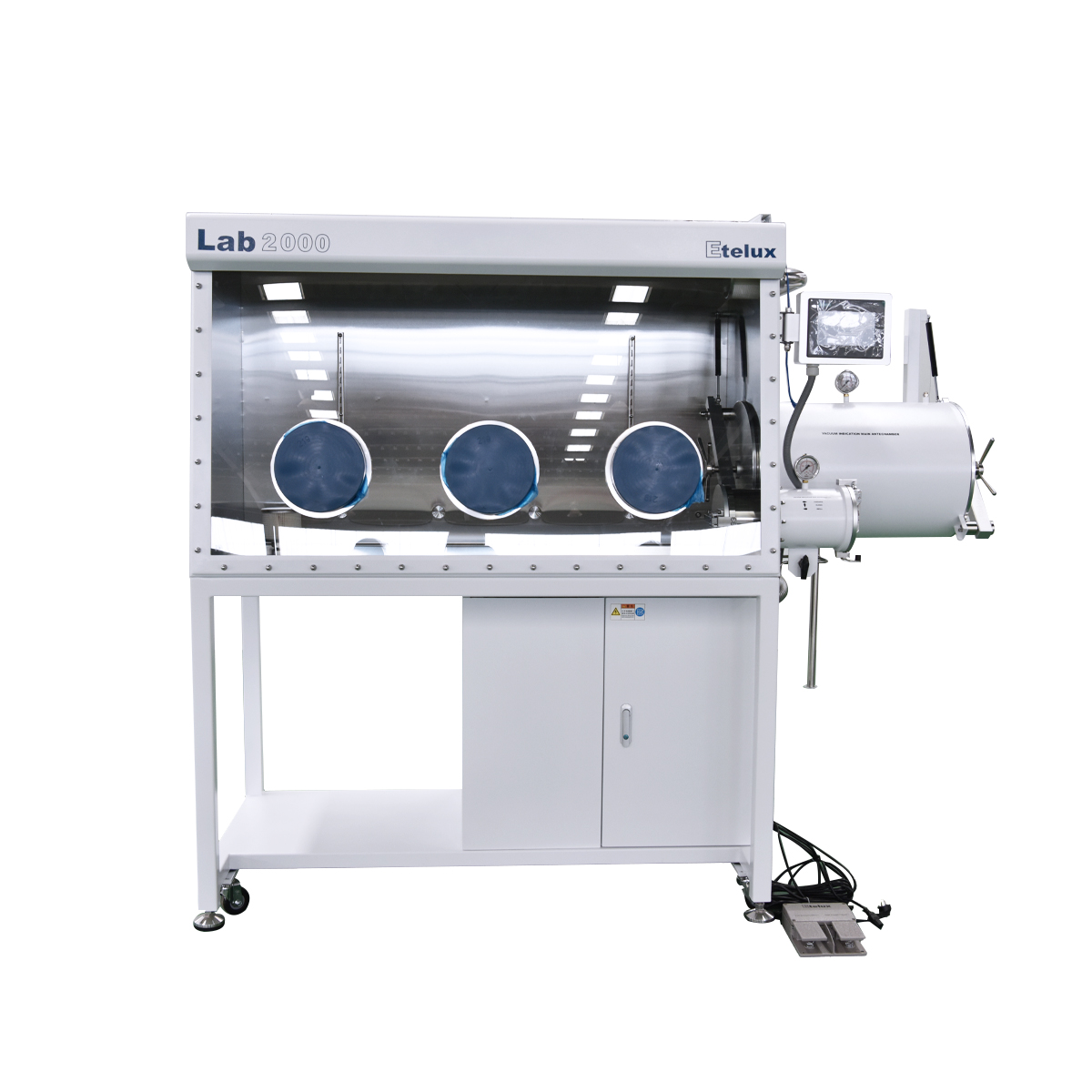

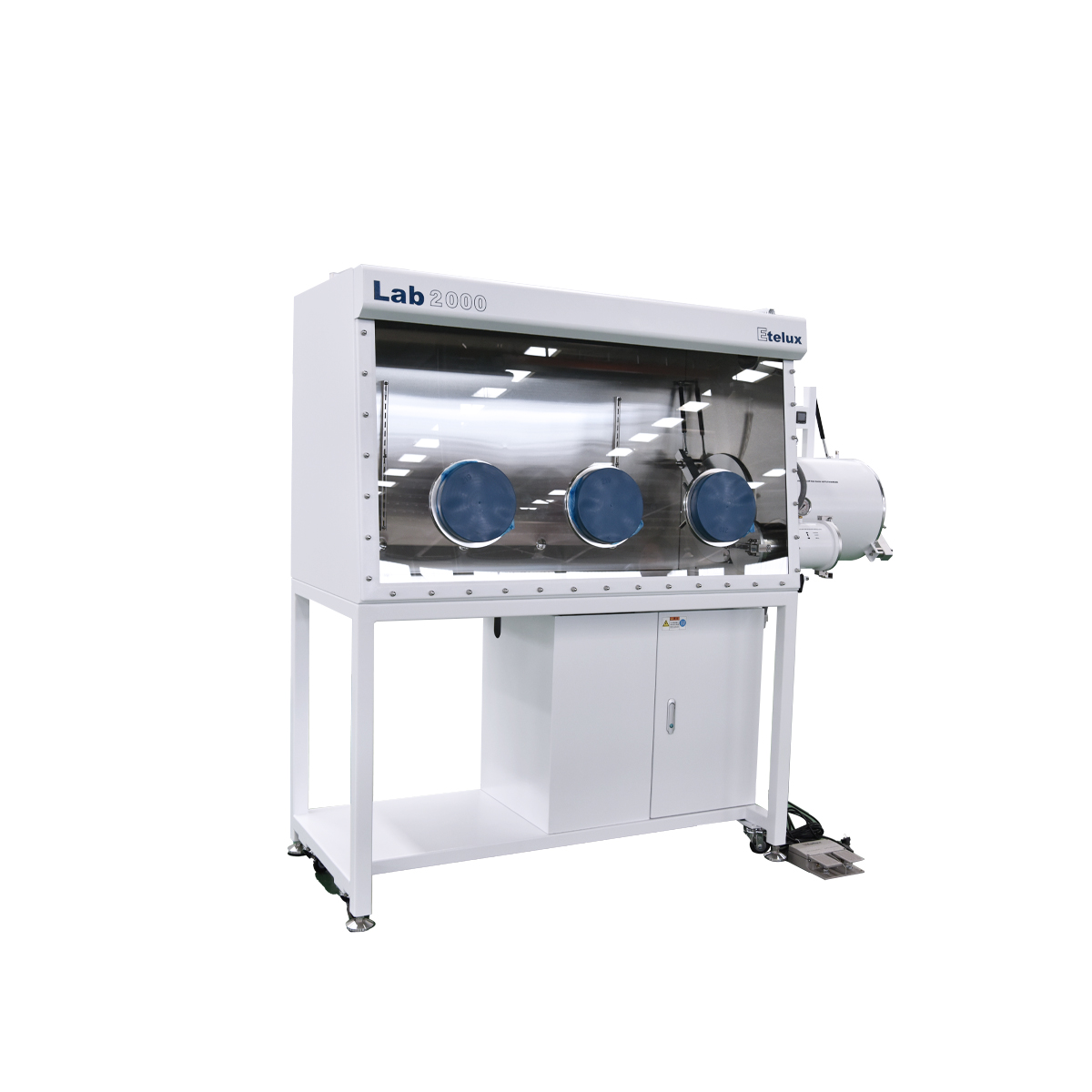

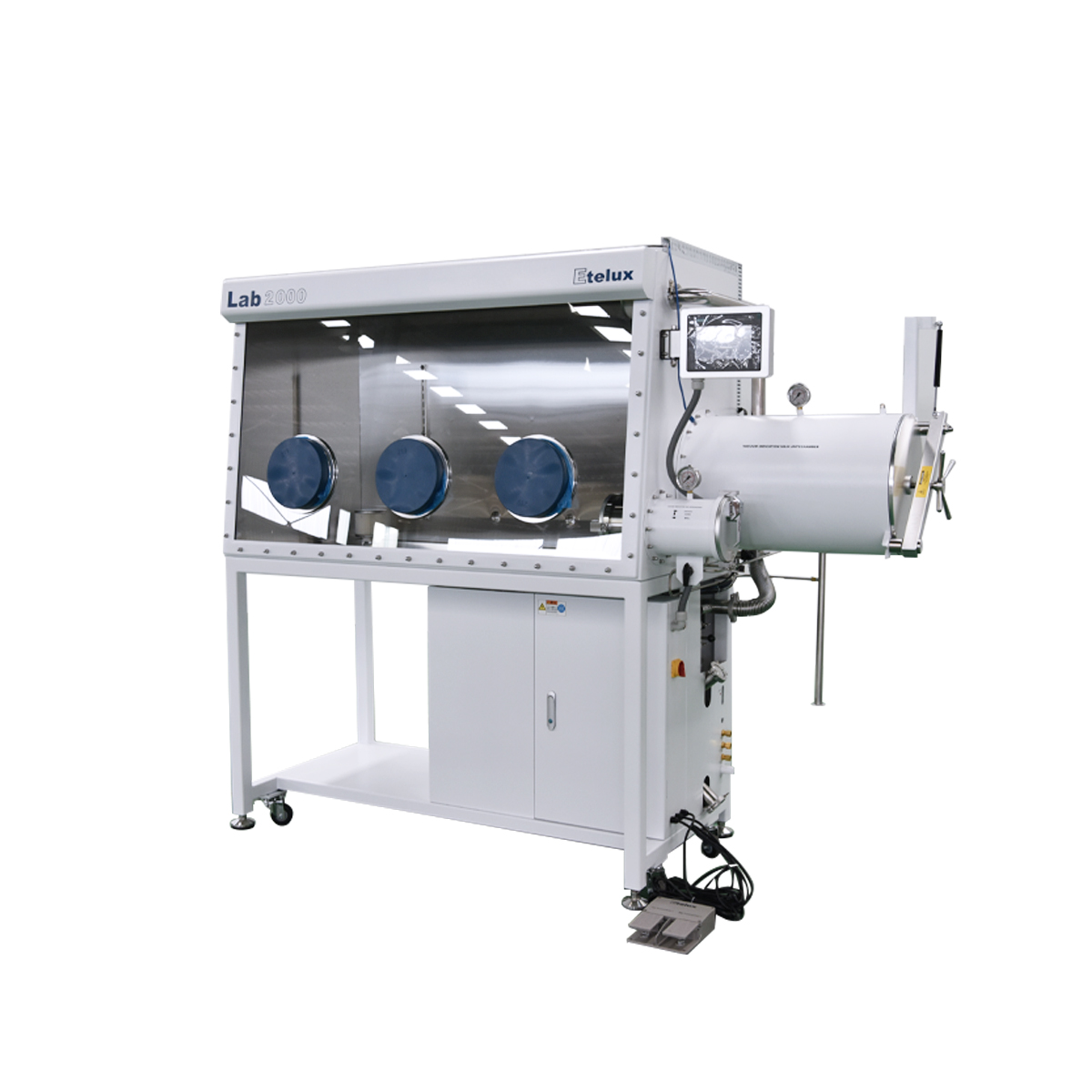

Lab2000 Series Standard 1500 Integrated Single-sided Glove Box

[wpforms id=”1190″ title=”true” description=”Request a call back”]
Technical Parameters
Chamber
DescriptionMaterial: Stainless steel 1.4301 (SUS type 304); Thickness 3 mm;Dimensions: 1500mm(59.1″) x 750mm(29.5″) x900mm(35.4″) L x W x H
Volumn 0.8 m³(28.2cu)
Front windowPanel: 8 mm thick safety tempered glass or 10 mm thick polycarbonate (optional);Dimensions: 1435mm (56.5″)   x839mm (33.0″) L x H
Glove portHard aluminum alloy material or polyoxymethylene material (optional); Glove port diameter: 220 mm (8.7″); O-ring seal
Gloves Material: Butyl rubber; Thickness: 0.4 mm or 0.8 mm (available for selection)
FilterOutlet and inlet filters, filter rate<0.3μm
IlluminationLED lighting is located on the top of the front window
Leak rateFinal acceptance test according to the standard of leakage rate <0.05 vol% / h
GP20 Gas Purification System
DescriptionAutomatic removal of H₂O and O₂; single purification column system, automatic regeneration (optional GP200 double purification column); closed gas circulation line
Use voltageAC 230 V / 50-60 Hz, 10 A  or  AC 115 V / 50-60 Hz, 20 A (Available for selection)
Working gasWorking gas：N₂、Ar 、He(purity≥99.999%)；Regeneration gas：H₂ accounts for 5% -10%, the rest is working gas (purity ≥99.999%)
Vacuum pumpSpecifications: Rotary vane vacuum pump, equipped with oil mist filter, with gas ballast control; flow rate: 12 m³ /h (7 cfm), vacuum degree < 2 x 10-3    mbar (dry pump optional)
Circulation unitOil-free high-speed fan; air volume: 0-100 m³ / h (0-59 cfm)
ValveElectromagnetic high vacuum valve
Leak rateFinal acceptance test according to the standard of leakage rate <0.05 vol% / h
Cleaning system
DescriptionAfter setting the corresponding time and pressure, the system can automatically perform gas replacement in the chamber.
Analyzer
    Oxygen analyzerSize205 mm（8.1″） x 80 mm（3.1″） x 60 mm（2.4″）L x W x H
Measurement range0-1000 ppm
Other oxygen transmitterGE oxy.IQ™ Oxygen Transmitter
   Dew analyzerSize205 mm（8.1″） x 80 mm（3.1″） x 60 mm（2.4″）L x W x H
Measurement range0-500 ppm
Other water transmitterGE VeriDri™ Dew-Point Transmitter
  Solvent purification system
  Leak rateMaterial: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Internal size: 220mm (8.7″) x 450mm (17.7″)  Φ x HHigh-quality activated carbon
Optional equipment
  RefrigeratorIndependent control system, integrated in the side panel of the chamber, temperature -35 ℃, volume 18L or 32L optional; main chamber 304 stainless steel sheet, 5 layers of variable compartments R404 environmentally friendly refrigerant, imported
Heating chamberThe main antechamber is equipped with a heating system with a temperature of 200 ℃ and a temperature control of ± 1 ℃
  Other instructions
Product certificationISO9001 certification, CE certification, UL certification
WarrantyOne-year warranty period, lifetime maintenance
Application considerationsFor details, please refer to the instruction manual danger, warning, caution, etc

  1.  The glove box has beautiful design, compact structure and fineworkmanship;
  2. Theinert gas in the glove box is circulated in a closed cycle by a circulation fan and a purifier, continuously absorbing O₂and H₂O;
  3. The H₂O and O₂ removal materials can be regenerated, and the regeneration process is automatically controlled by theprogram;
  4. Using the latest European technology, all key components are imported from Europe, from world-renownedmanufacturers;
  5. Thecontrol system includes self-diagnosis, power-off and self-starting features, pressure control and adaptive functions, password protection, and the control unit uses Siemens PLC touch screen;
  6. Thewater analyzer has strong corrosion resistance and wide application fields, especially for users of lithium battery manufacturing and metal organic, etc., it can be cleaned for 3 times and reused repeatedly, avoiding the problem of scrapping once pollution;
  7. The oxygen analyzer uses the ZrO₂ sensor to avoid the problem of short life of the fuel cell and continuous exposure to theair;
  8. Theuse of integrated valve structure reduces and optimizes the system pipeline layout, reduces leakage points, simplifies the leak detection link, and the use of products is more stable and reliable;
  9. The equipment runs stably and can run continuously for 7 ×24h;
  10. Automatic control, simple operation, low operation and maintenance cost;
  11. Specialized, standardized and large-scale production of all parts of the glove box;
  12. Provide products for customers with various special requirements;
  13. All parts have been strictly audited andcontrolled;
  14. Rich design and controlexperience;
  15. The production process is strictly based on the ISO9001standard;
  16. High-precision modern test methods, helium mass spectrometer leak detection for key links in the production process, to ensure that the product quality is foolproof;
  17. Sophisticated technical team to achieve continuous improvement and improvement ofproducts;
  18. Perfect after-sales service system and rich after-sales service experience, setting up service organizations in Beijing,Shanghai, Guangzhou, Wuhan, Chengdu, Xi’an, Changchun and other places can achieve fast and thoughtful after-sales service.

Instruction-Standard1500 Integrated Single-sided Glove Box
