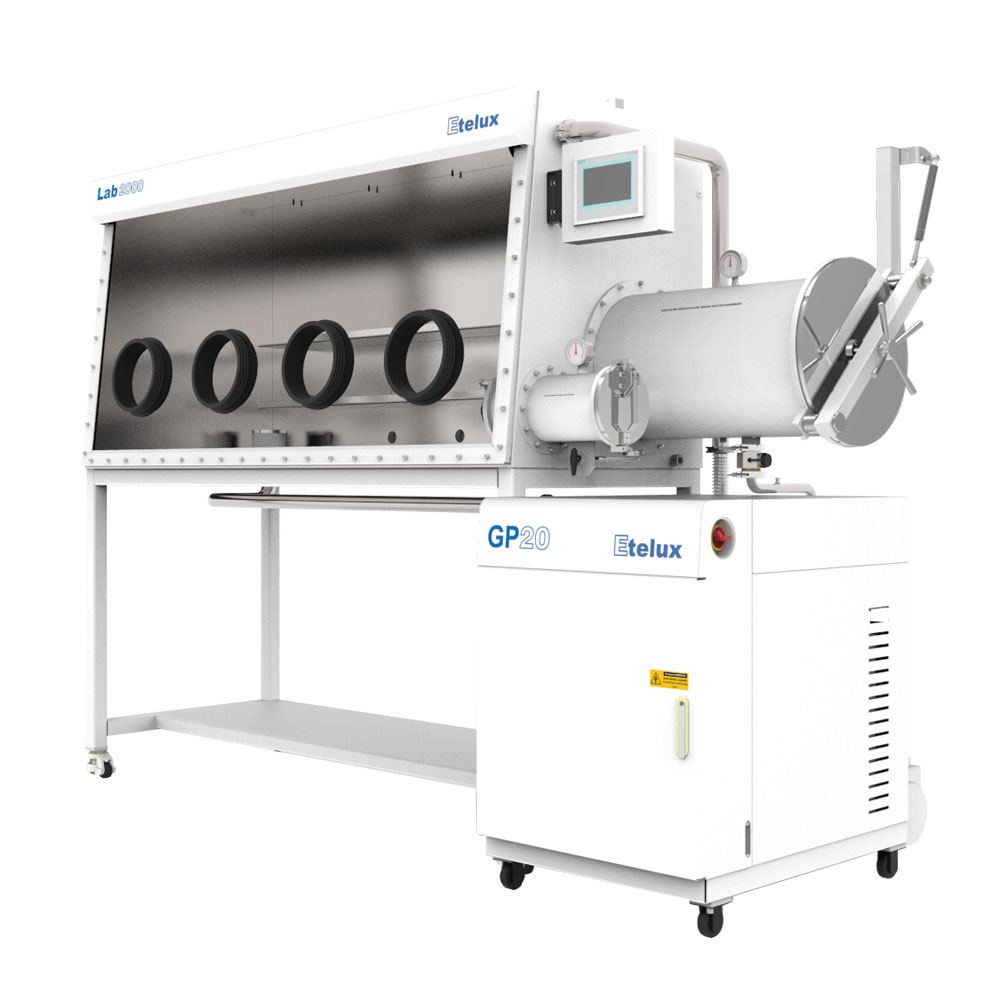

Lab2000 Series Standard 1800 Split Single-Sided Glove Box

[wpforms id=”1190″ title=”true” description=”Request a call back”]
Technical Parameters

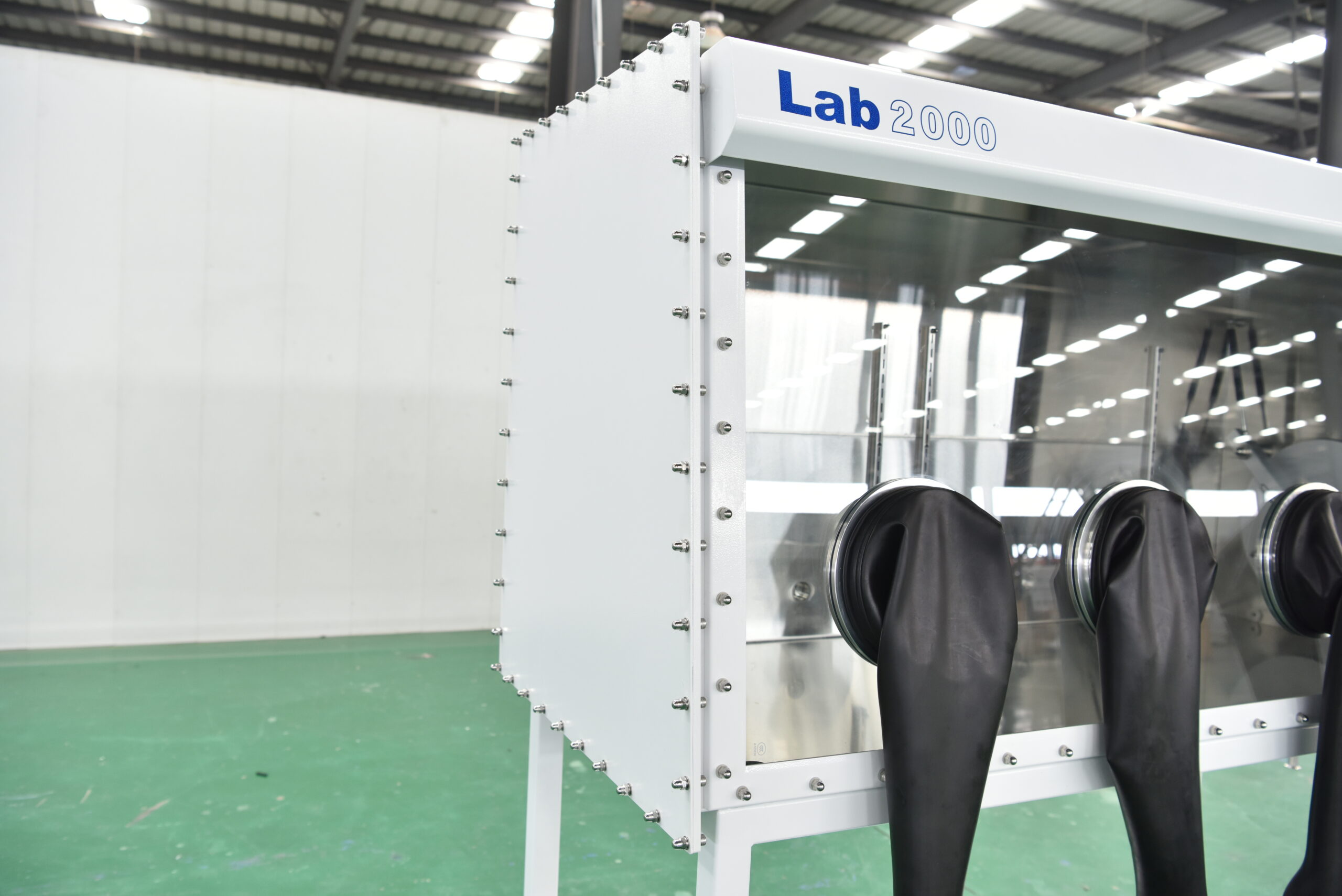

Cabinet
DescriptiveMaterial: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Dimensions: 1800mm(L) x 750mm(W) x 900mm(H)
Volumetric0.8 m³
Front windowPanel: 8 mm thick safety tempered glass or 10 mm thick polycarbonate (optional) Size: 1735mm(L) x 839mm(H)
Glove compartmentHard Aluminum or Paraformaldehyde (optional) 220 mm, O-Ring Seal
GloveMaterial: Buttyl rubber Thickness: 0.4 mm or 0.8 mm (optional)
FilterOutlet and inlet filters, filtration <0.3μm
illuminationLED lighting at the top of the front window
Leak rateFinal acceptance test according to leakage rate < 0.05 vol%/h
GP20 Gas Purification System
DescriptiveAutomatic removal of H2O and O2; single purge column system with automatic regeneration (optional GP200 dual purge column); closed gas circulation line
Operating VoltageAC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional)
Working gasWorking gas: N2, Ar, He (purity ≥ 99.999%); regeneration gas: H2 accounts for 5-10%, the rest is working gas (purity ≥ 99.999%)
Vacuum pumpsSpecifications: rotary vane vacuum pump, with oil mist filter, with gas ballast control; flow rate: 12 m³/h (7 cfm), vacuum < 2 x 10-3 mbar (dry pump optional)
Recurrent unitOil-free high speed fan; airflow:0 – 100 m³/h
ValvesSolenoid high vacuum valve
Leak rateFinal acceptance test according to leakage rate < 0.05 vol%/h
Cleaning system
DescriptiveSet the appropriate time and pressure, the system can automatically gas replacement of the box。
Analyzer
   VolumetricSize205 mm（L） x 80 mm（W） x 60 mm（H）
Measurement range0-1000 ppm
Other Oxygen AnalyzersGE oxy.IQ™ Oxygen Transmitter
   GloveSize205 mm（L） x 80 mm（W） x 60 mm（H）
Measurement range0-500 ppm
Other Oxygen AnalyzersGE VeriDri™ Dew-Point Transmitter
Solvent purification system
  Leak rateMaterial: stainless steel 1.4301 (SUS type 304), thickness 3 mm ; Internal dimensions. 220mm(Φ) x 450mm(H) ;High quality activated carbon;
Optional equipment
 Freezer cabinetIndependent control system, integrated in the side panel of the box, temperature -35℃, volume 18L or 32L optional；Main body 304 stainless steel plate, 5 variable compartments；                                                                               R404 environmentally friendly refrigerant, original imported；
Heated cabinThe large transition chamber is equipped with a heating system with a temperature of 200°C and a temperature control of ±1°C.
Other notes
Product CertificationISO9001 certification, CE certification, UL certification
warranty periodOne year warranty, lifetime maintenance
Application NotesFor details, refer to the Danger, Warning, Caution, etc. section of the manual.
  1. The glove box has a beautiful design, compact structure, and fine workmanship;
  2. The inert gas inside the glove box is circulated in a closed manner through a circulating fan and purifier, continuously absorbing oxygen and water;
  3. The material for removing water and oxygen can be regenerated, and the regeneration process is automatically controlled by a program;
  4. Adopting the latest European technology, all key components are imported from Europe and sourced from world-renowned manufacturers;
  5. The control system includes self diagnosis, power-off self starting characteristics, pressure control and adaptive functions, password protection, and the control unit adopts Siemens PLC touch screen;
  6. The water analyzer has strong corrosion resistance and a wide range of applications, especially for users in lithium battery manufacturing and metal organic industries. It can be cleaned three times free of charge and reused, avoiding the problem of being scrapped after one pollution;
  7. The oxygen analyzer uses ZrO2sensors to avoid the problem of short lifespan and continuous exposure to air in fuel cells;
  8. Adopting an integrated valve structure reduces and optimizes the system pipeline layout, reduces leakage points, simplifies the leak detection process, and makes the product more stable and reliable to use;
  9. The equipment runs stably and can operate continuously for 7 × 24 hours for a long time;
  10. Automatic control, simple operation, low operation and maintenance costs;
  11. Specialized, standardized, and large-scale production of various parts of the glove box;
  12. Provide products for customers with various special requirements;
  13. All components have undergone strict review and control;
  14. Rich experience in design and control;
  15. The production process strictly follows the ISO9001 standard;
  16. High precision modern testing methods are used to conduct helium based leak detection on key links during the production process, ensuring that product quality is foolproof;
  17. Excellent technical team to achieve continuous improvement and perfection of products;
  18. With a comprehensive after-sales service system and rich after-sales service experience, setting up service agencies in Beijing, Shanghai, Guangzhou, Wuhan, Chengdu, Xi’an, Changchun and other places can achieve fast and thoughtful after-sales service.
