Lab2000 Series Standard 1800 Integrated Single-sided Glove Box

  • Stainless steel cabinet design with tempered glass or polycarbonate front window (optional)；
  • Indicator: Water, oxygen ≤ 1ppm;
  • Leakage rate: ≤0.05vol%/h；
  • Solenoid valves with modular design, reduced leakage rate, easy to replace；
  • Large transition hatch with sliding tray and uniquely designed transition hatch that is lightweight and easy to open；
  • GP-20 purification system for inert gases；
  • SIEMENS Microcontrollers ；
  • SIEMENS operating touch screen for  easy access to functions；
  • Data memo: automatic recording of system data；
  • Closed gas circulation, oil and vacuum free；
  • Foot pedal instead of manual adjustment of pressure control；
  • All stainless steel gas flow piping and fittings；
  • EDWARDS RV12 vacuum pump；
  • HEPA High Efficiency Filter；
  • Automatic pressure control, working air pressure can be set in the range of ±12mbar；
  • Height Adjustable Bracket；
  • Adjustable casters for easy mobility；
  • Lampshade with anti-reflective film

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

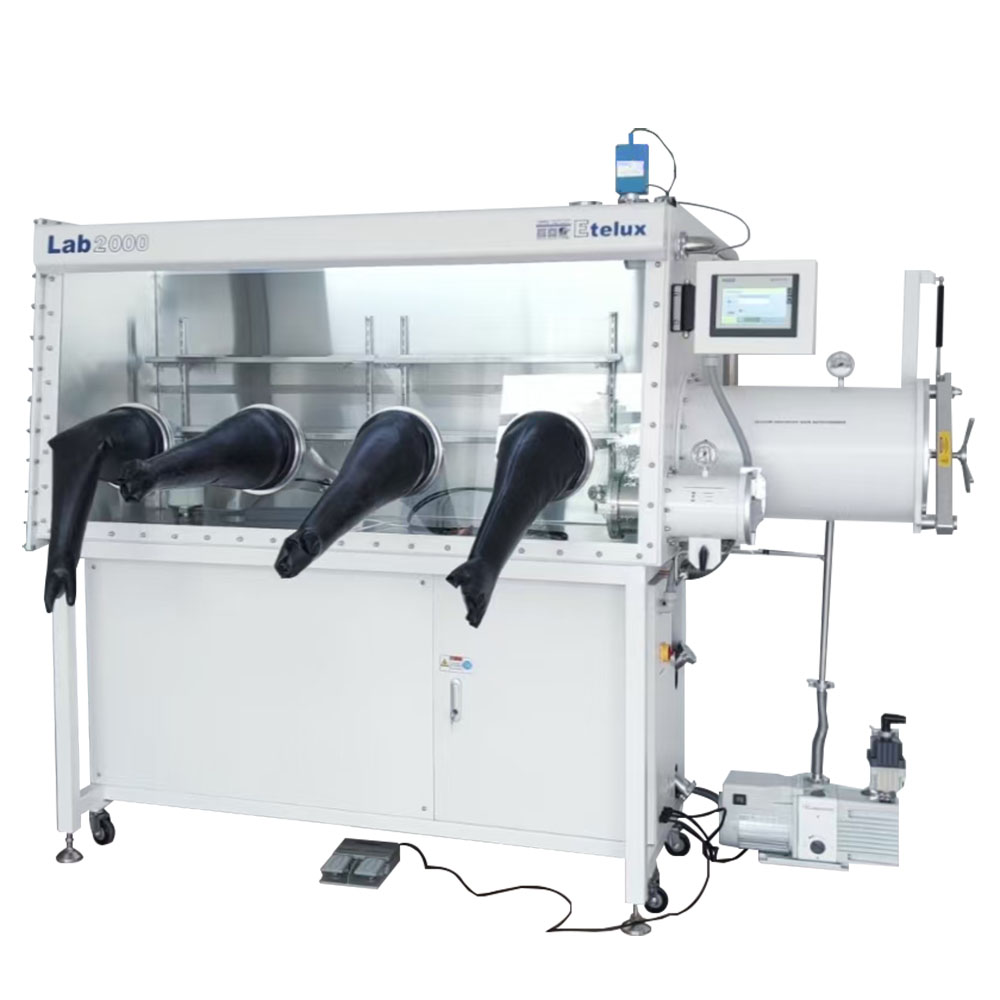

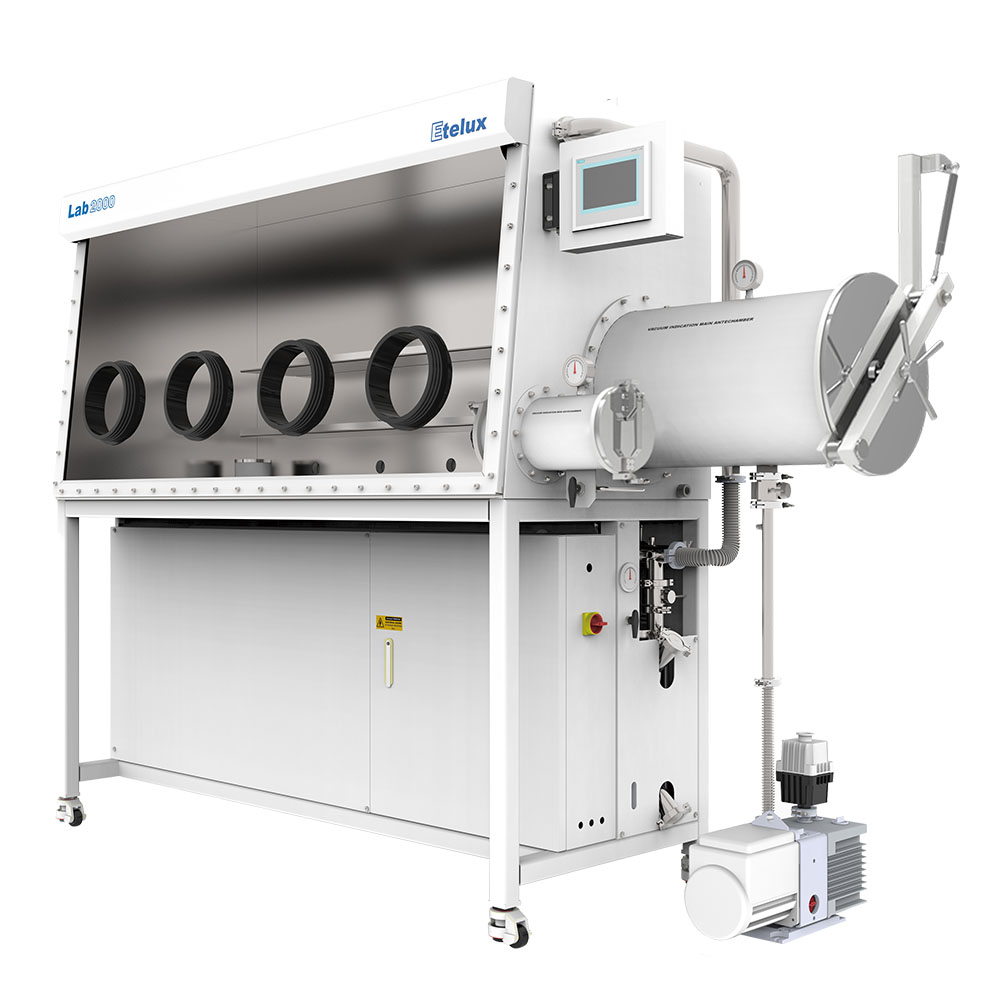

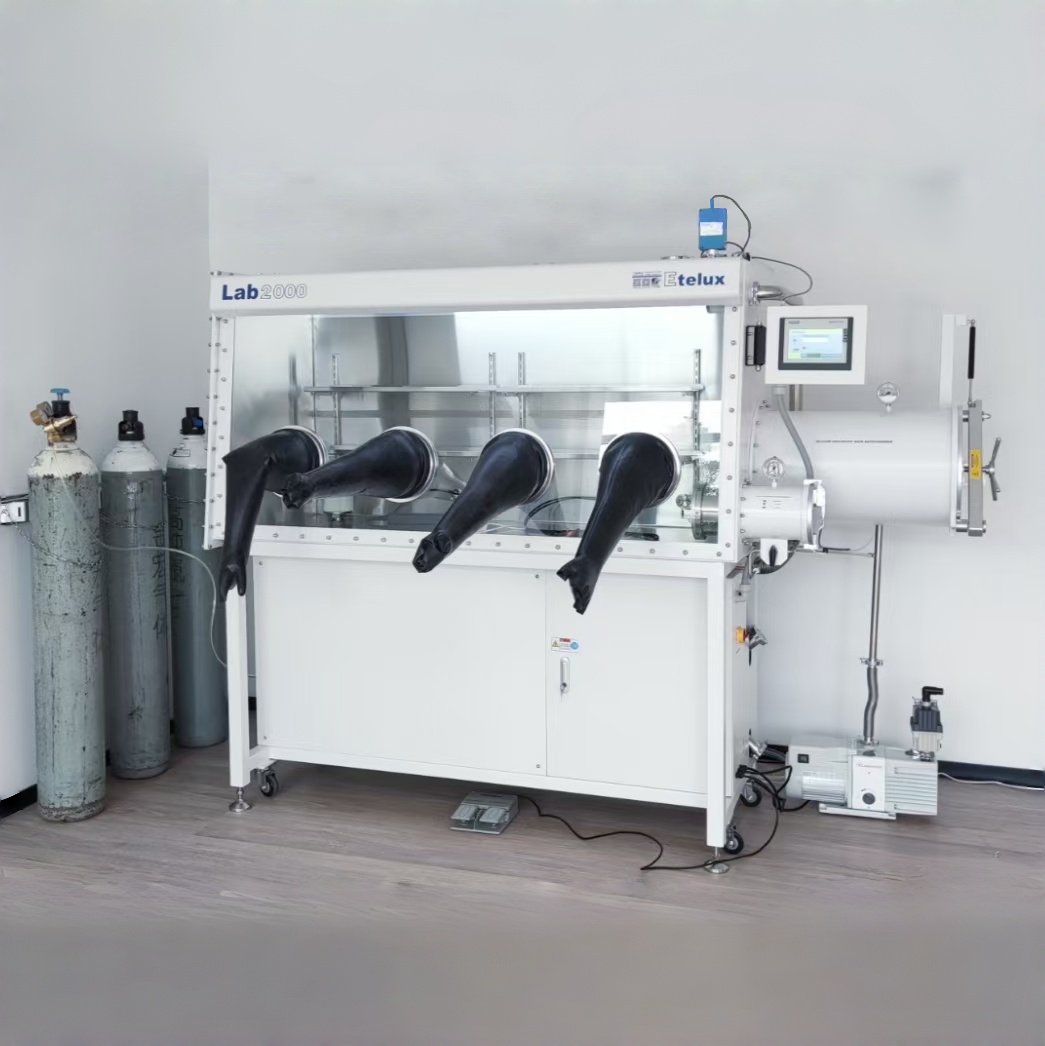

Lab2000 Series Standard 1800 Integrated Single-sided Glove Box

[wpforms id=”1190″ title=”true” description=”Request a call back”]
Technical Parameters
Cabinet
DescriptiveMaterial: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Dimensions: 1800mm(L) x 750mm(W) x 900mm(H)
Volumetric0.8 m³
Front windowPanel: 8 mm thick safety tempered glass or 10 mm thick polycarbonate (optional) Size: 1735mm(L) x 839mm(H)
Glove compartmentHard Aluminum or Paraformaldehyde (optional) 220 mm, O-Ring Seal
GloveMaterial: Butyl rubber Thickness: 0.4 mm or 0.8 mm (optional)
FilterOutlet and inlet filters, filtration <0.3μm
illuminationLED lighting at the top of the front window
Leak rateFinal acceptance test according to leakage rate < 0.05 vol%/h
GP20 Gas Purification System
DescriptiveAutomatic removal of H2O and O2; single purge column system with automatic regeneration (optional GP200 dual purge column); closed gas circulation line
Operating VoltageAC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional)
Working gasWorking gas: N2, Ar, He (purity ≥ 99.999%); regeneration gas: H2 accounts for 5-10%, the rest is working gas (purity ≥ 99.999%)
Vacuum pumpsSpecifications: rotary vane vacuum pump, with oil mist filter, with gas ballast control; flow rate: 12 m³/h (7 cfm), vacuum < 2 x 10-3 mbar (dry pump optional)
Recurrent unitOil-free high speed fan; airflow:0 – 100 m³/h
ValvesSolenoid high vacuum valve
Leak rateFinal acceptance test according to leakage rate < 0.05 vol%/h
Cleaning system
DescriptiveSet the appropriate time and pressure, the system can automatically gas replacement of the box。
Analyzer
   VolumetricSize205 mm（L） x 80 mm（W） x 60 mm（H）
Measurement range0-1000 ppm
Other Oxygen AnalyzersGE oxy.IQ™ Oxygen Transmitter
   GloveSize205 mm（L） x 80 mm（W） x 60 mm（H）
Measurement range0-500 ppm
Other Oxygen AnalyzersGE VeriDri™ Dew-Point Transmitter
Solvent purification system
  Leak rateMaterial: stainless steel 1.4301 (SUS type 304), thickness 3 mm ; Internal dimensions. 220mm(Φ) x 450mm(H) ;High quality activated carbon;
Optional equipment
 Freezer cabinetIndependent control system, integrated in the side panel of the box, temperature -35℃, volume 18L or 32L optional；Main body 304 stainless steel plate, 5 variable compartments；                                                                               R404 environmentally friendly refrigerant, original imported；
Heated cabinThe large transition chamber is equipped with a heating system with a temperature of 200°C and a temperature control of ±1°C.
Other notes
Product CertificationISO9001 certification, CE certification, UL certification
warranty periodOne year warranty, lifetime maintenance
Application NotesFor details, refer to the Danger, Warning, Caution, etc. section of the manual.

  1. Glove box has a beautiful design, compact structure and fine workmanship；
  2. The inert gas in the glove box is continuously absorbing oxygen and water through the closed circulation of the circulating fan and purifier；
  3. The water-oxygen removal material can be regenerated, and the regeneration process is automatically controlled by the program；
  4. Adopting the latest European technology, all key components are imported from Europe and come from world famous manufacturers；
  5. Control system includes self-diagnostics, power failure self-start characteristics, with pressure control and adaptive functions, password protection, control unit using Siemens PLC touch screen；
  6. Water analyzer corrosion resistance, wide range of applications, especially for lithium manufacturing and metal organic and other users, can be 3 times free cleaning and reuse, to avoid a pollution that is the end of the problem；
  7. Oxygen analyzer with ZrO2sensor avoids short fuel cell life and constant exposure to air；
  8. The use of integrated valve structure, reduce and optimize the system piping arrangement, reduce the leakage point, simplify the leakage detection link, the use of products more stable and reliable；
  9. Equipment operation is stable, can be continuous 7 × 24h long-term operation；
  10. Automatic control, simple operation, low operation and maintenance costs；
  11. Each part of the glove box specialization, standardization, large-scale production；
  12. Products for a wide range of special requirements；
  13. All parts are carefully audited and controlled；
  14. Extensive design and control experience；
  15. The production process is carried out in strict accordance with ISO9001 standards；
  16. High-precision modernized testing means, helium quality park leakage detection of key links in the production process, to ensure product quality is foolproof.；
  17. Sophisticated technical team to realize the continuous improvement and perfection of products；
  18. Perfect after-sales service system and rich after-sales service experience, in Beijing, Shanghai, Guangzhou, Wuhan, Chengdu, Xi’an, Changchun and other places to set up service organizations, can realize fast, thoughtful after-sales service.

Instructions-Standard1800 Integrated Single-sided Glove Box
