Lab2000 Series 1200 Integrated Single-sided Glove Box
Lab2000 Series Standard 1500 Split Double-Sided Glove Box

Lab2000 Series 1500 Split Single-Sided Glove Box

  •  Stainless steel box design, tempered glass or polycarbonate front window (optional);
  • Indicator: Water and oxygen ≤ 1ppm;
  • Leakage rate: ≤ 0.05vol%/h;
  • The solenoid valve adopts modular design, which reduces leakage rate and is easy to replace;

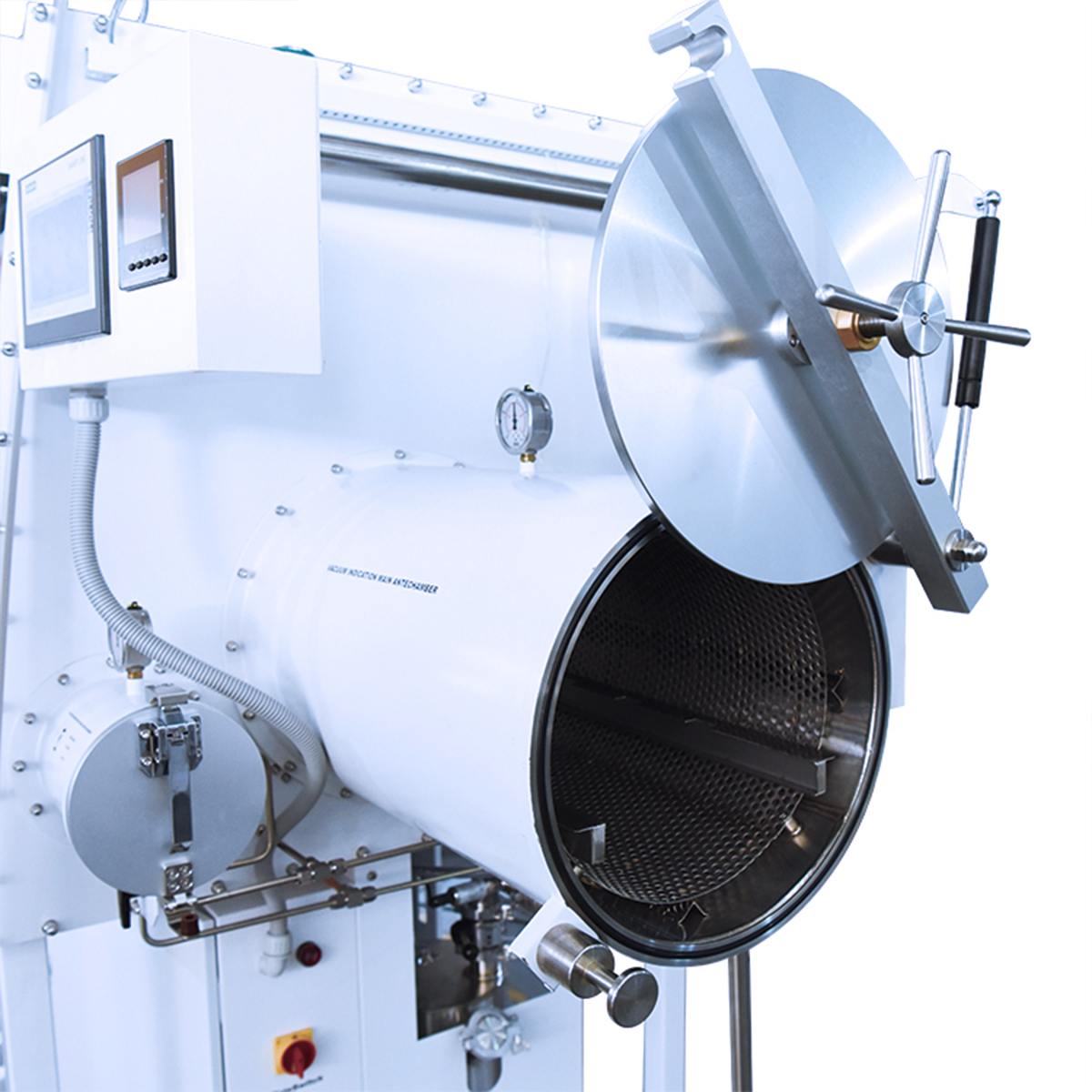

  • Large transition cabin with sliding tray, unique design of transition cabin door, lightweight and easy to open;
  • GP-20 inert gas purification system;
  • SIEMENS micro-controller;

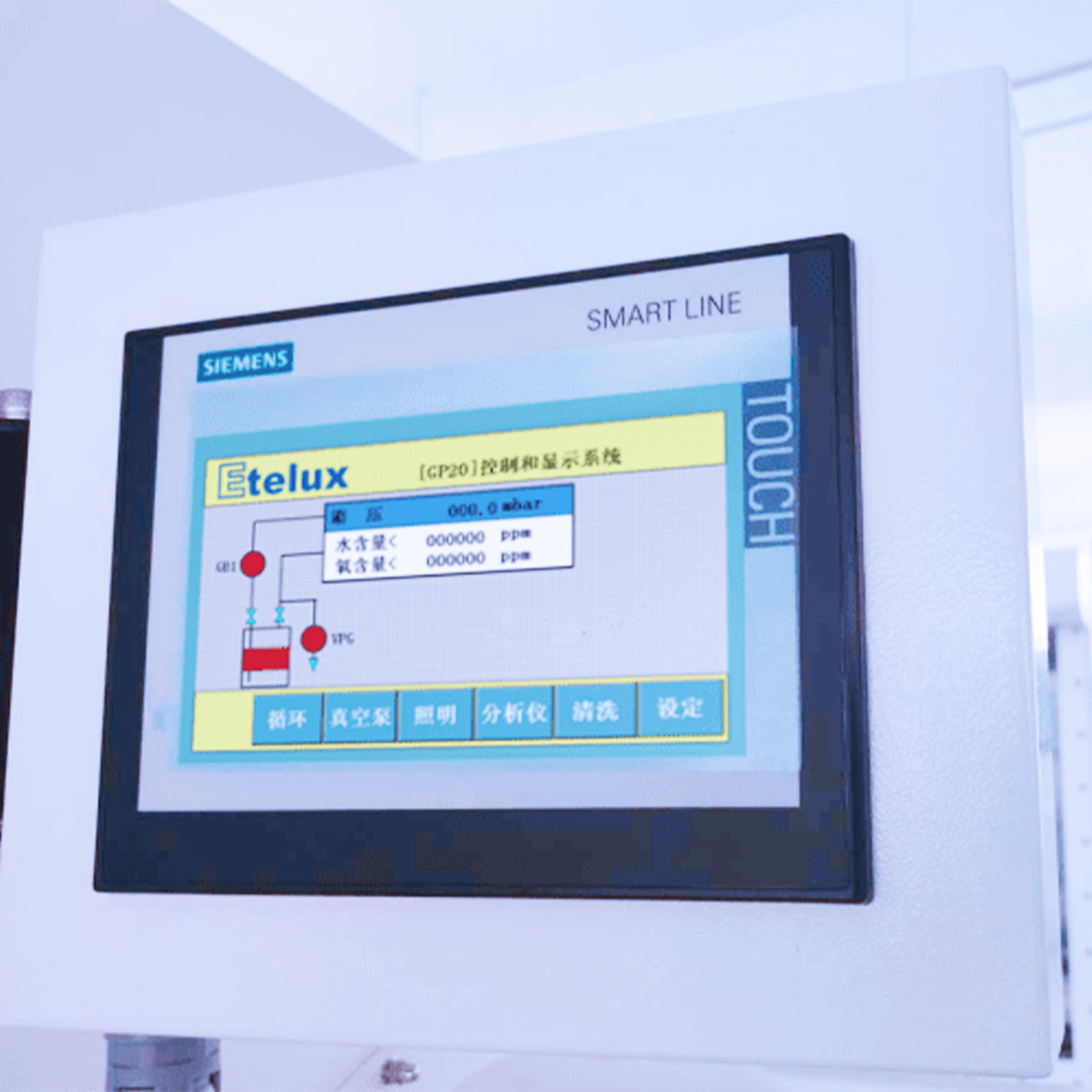

  • SIEMENS operation touch screen, easy to access various functions;
  • Data memo: Automatically record system data;
  • Closed gas circulation, oil-free and vacuum free;
  • Use foot pedals instead of manual pressure control;
  • All stainless steel gas flow pipes and fittings;
  • EDWARDS RV12 vacuum pump;
  • HEPA high-efficiency filter;
  • Automatic pressure control, the working pressure can be set within a range of ± 12mbar;
  • Adjustable height bracket;
  • Adjustable casters for easy mobility;Lampshade with anti reflective film;

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

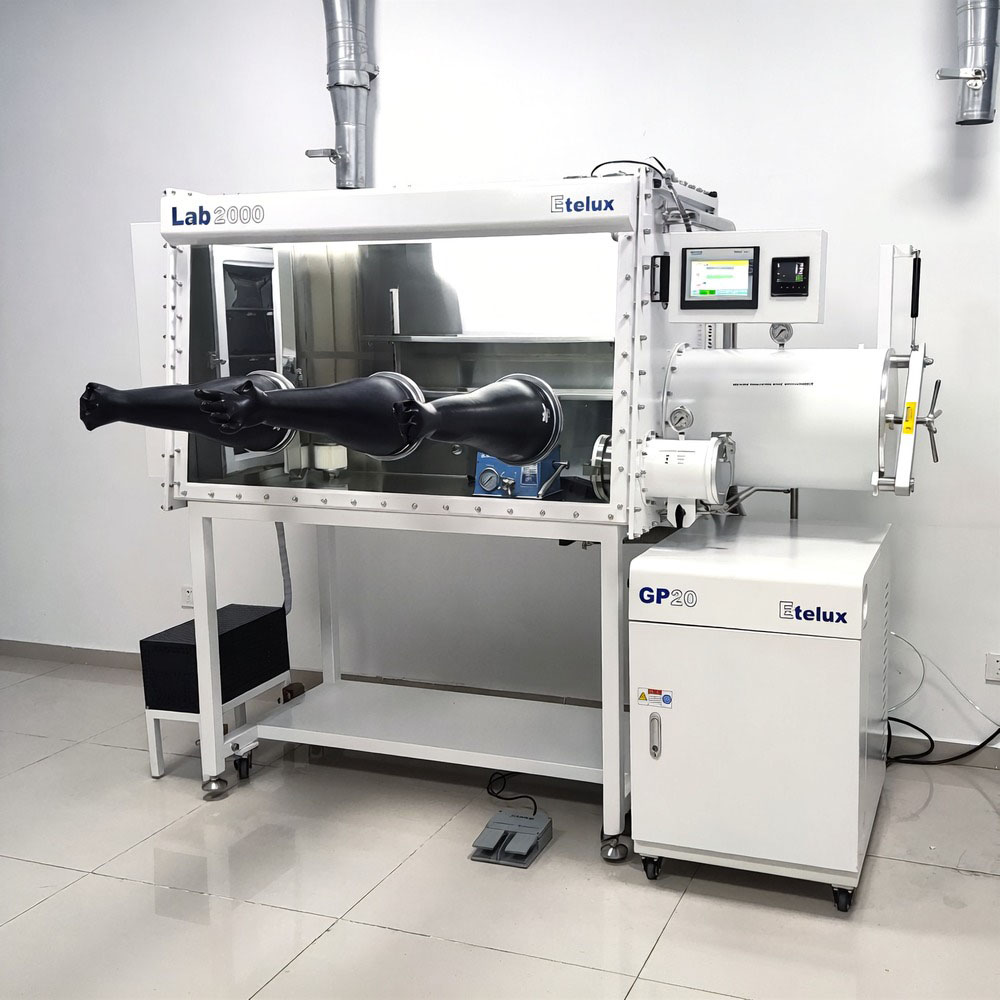

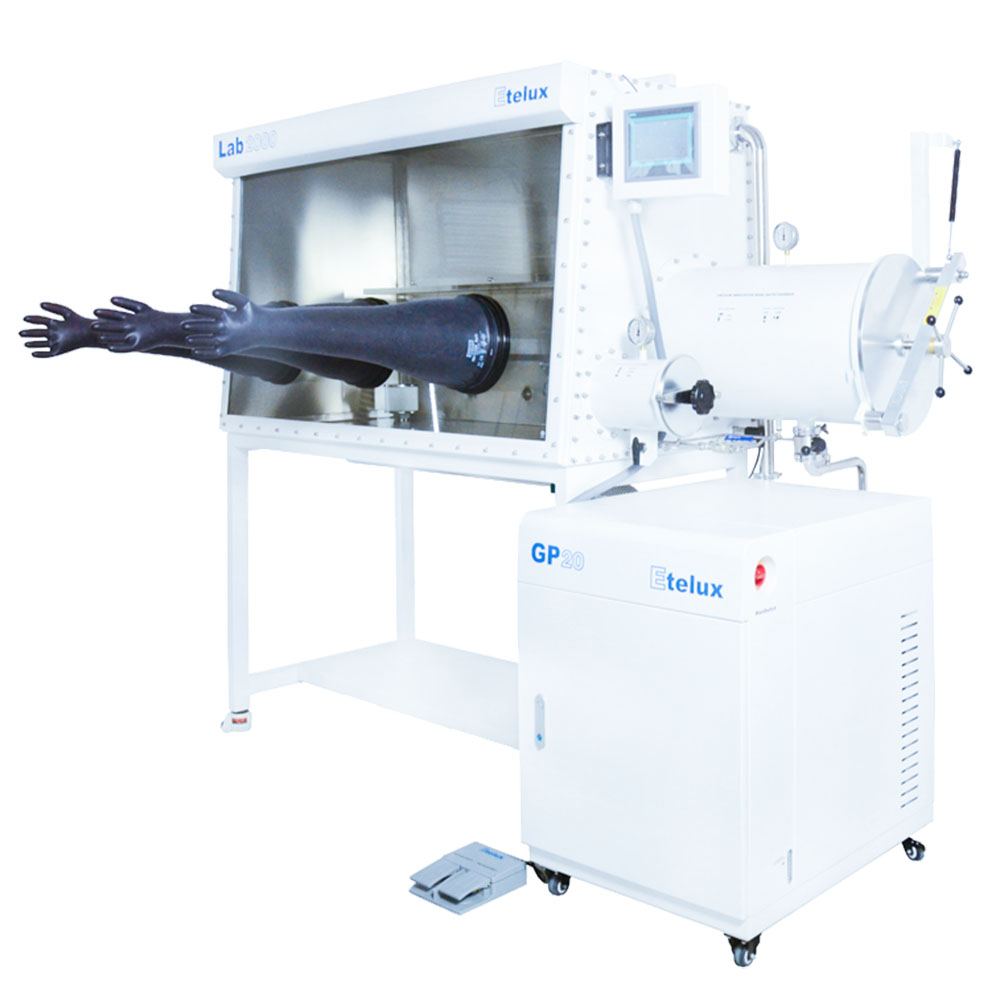

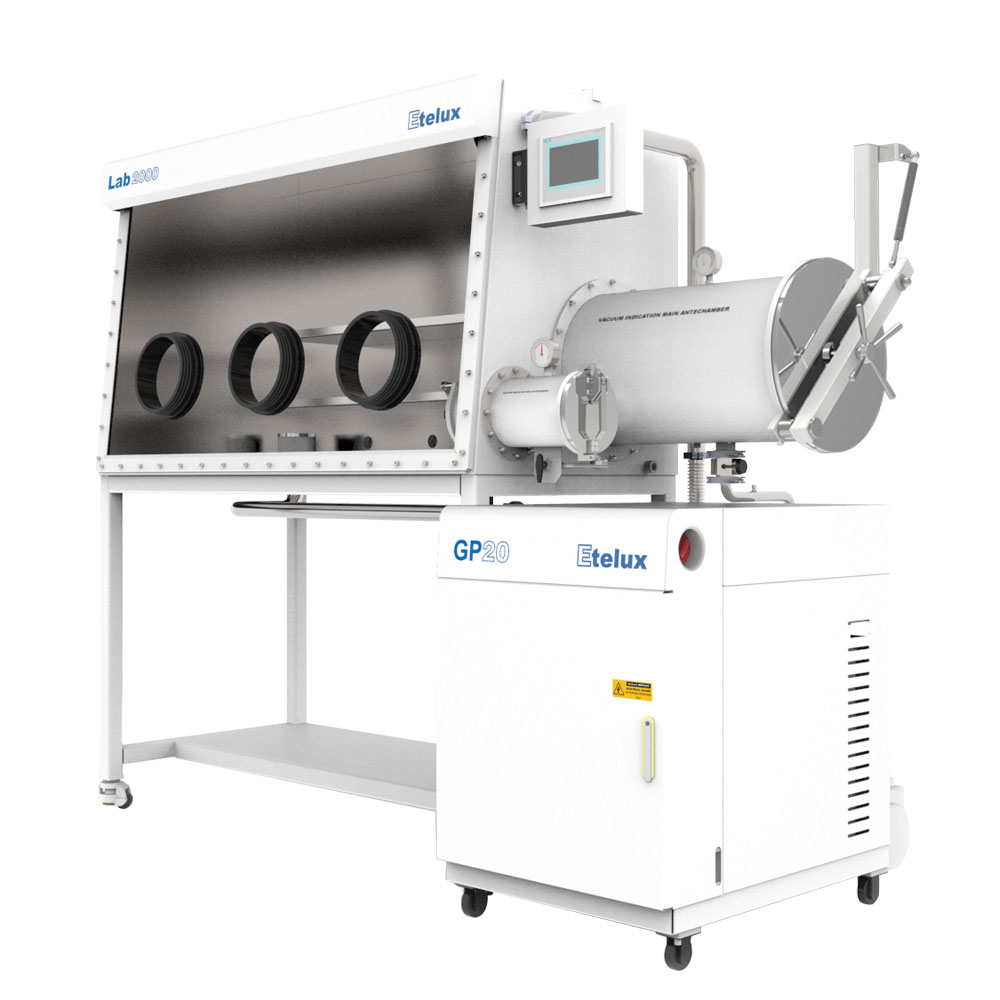

Lab2000 Series 1500 Split Single-Sided Glove Box

[wpforms id=”1190″ title=”true” description=”Request a call back”]
Technical parameters
Box
DescribeMaterial: 1.4301 stainless steel (SUS type 304), thickness 3 Size : 1500mm (L) x 750mm(W) x 900mm(H)
Volume0.8 m³
Front WindowPanel: 8 mm thick tempered safety glass or 10 mm thick polycarbonate (optional) Dimensions: 1435 mm (L) x 839 mm (H)
Glove MouthHard aluminum alloy or polyoxymethylene (POM) material (optional), 220 mm diameter, O-ring seal.
GlovesMaterial: Butyl rubber; Thickness: 0.4 mm or 0.8mm (available)
FilterInlet and outlet filters, filtering <0.3μm
IlluminationLED lighting is located at the top of the front windshield.
Leakage rateFinal acceptance testing will be conducted according to the standard of leakage rate < 0.05 vol%/h.

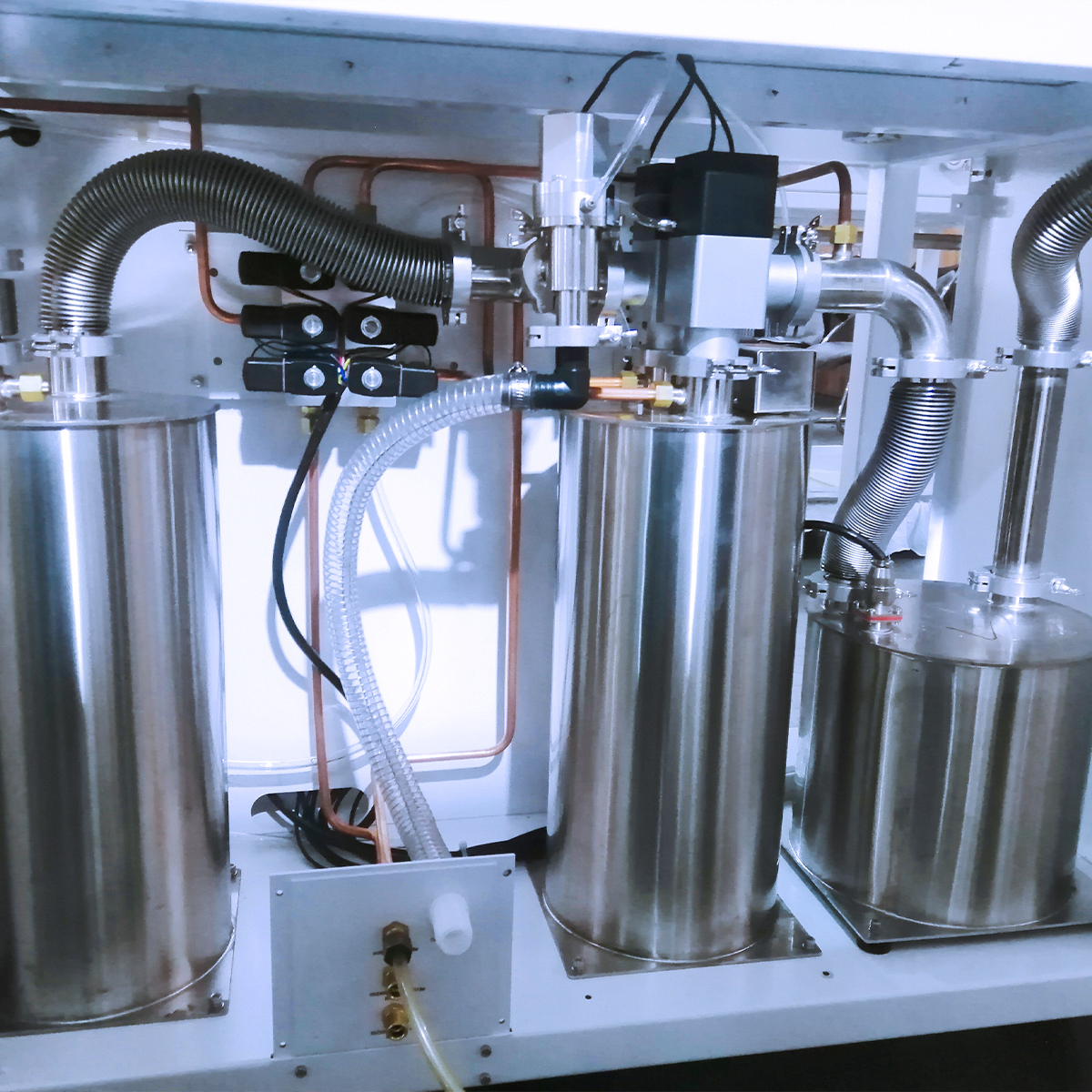

GP20 Gas Purification System
DescribeAutomatically remove H2O and O2; Single purification column system, automatic regeneration (optional GP200 dual purification column); Closed gas circulation pipeline
Use VoltageAC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional)
Working GasWorking gas: N2, Ar, He (purity ≥ 99.999%); Rebirth: H2 accounts for 5% -10%, the rest is working gas (purity ≥ 99.999%)
Vacuum PumpSpecification: rotary vane vacuum pump, equipped with oil mist filter, with pneumatic control;  Flow rate: 12 m ³/h (7 cfm), vacuum degree<2 x 10-3 mbar (optional dry pump)
Loop UnitOil-free high-speed fan; air volume: 0 – 100 m³/h
ValveElectromagnetic high vacuum valve
Leakage RateFinal acceptance testing will be conducted according to the standard of leakage rate < 0.05 vol%/h.
Cleaning System
DescribeOnce the appropriate time and pressure are set, the system can automatically replace the gas in the chamber.
Analyzer
   VolumeSize205 mm (L) x 80 mm (W) x 60 mm (H)
Measurement range0-1000 ppm
Other oxygen analyzersGE oxy.IQ™ Oxygen Transmitter
   GlovesSize205 mm (L) x 80 mm (W) x 60 mm (H)
Measurement range0-500 ppm
Other water analyzersGE VeriDri™ Dew-Point Transmitter
Solvent Purification System
  Leakage RateMaterial: 1.4301 stainless steel (SUS type 304), 3 mm thick; Internal dimensions: 220 mm (Φ) x 450 mm (H);High-quality activated carbon;
Optional Equipment
  RefrigeratorIndependent control system integrated into the side panel of the cabinet; temperature -35℃; 18L or 32L capacity optional; Main body made of 304 stainless steel plate; 5-layer variable partition; R404 environmentally friendly refrigerant, original import;
Heated ChamberThe large transition chamber is equipped with a heating system with a temperature of 200℃ and a temperature control range of ±1℃.
Other Notes
Product CertificationISO9001 certification, CE certification, UL certification
Warranty PeriodOne-year warranty, lifetime repair
Application NotesFor details, please refer to the danger, warning, and precaution clauses in the instruction manual.
  1. The glove box has a beautiful design, compact structure, and fine workmanship;
  2. The inert gas inside the glove box is circulated in a closed manner through a circulating fan and purifier, continuously absorbing oxygen and water;
  3. The material for removing water and oxygen can be regenerated, and the regeneration process is automatically controlled by a program;
  4. Adopting the latest European technology, all key components are imported from Europe and sourced from world-renowned manufacturers;
  5. The control system includes self diagnosis, power-off self starting characteristics, pressure control and adaptive functions, password protection, and the control unit adopts Siemens PLC touch screen;
  6. The water analyzer has strong corrosion resistance and a wide range of applications, especially for users in lithium battery manufacturing and metal organic industries. It can be cleaned three times free of charge and reused, avoiding the problem of being scrapped after one pollution;
  7. The oxygen analyzer uses ZrO2sensors to avoid the problem of short lifespan and continuous exposure to air in fuel cells;
  8. Adopting an integrated valve structure reduces and optimizes the system pipeline layout, reduces leakage points, simplifies the leak detection process, and makes the product more stable and reliable to use;
  9. The equipment runs stably and can operate continuously for 7 × 24 hours for a long time;
  10. Automatic control, simple operation, low operation and maintenance costs;
  11. Specialized, standardized, and large-scale production of various parts of the glove box;
  12. Provide products for customers with various special requirements;
  13. All components have undergone strict review and control;
  14. Rich experience in design and control;
  15. The production process strictly follows the ISO9001 standard;
  16. High precision modern testing methods are used to conduct helium based leak detection on key links during the production process, ensuring that product quality is foolproof;
  17. Excellent technical team to achieve continuous improvement and perfection of products;
  18. With a comprehensive after-sales service system and rich after-sales service experience, setting up service agencies in Beijing, Shanghai, Guangzhou, Wuhan, Chengdu, Xi’an, Changchun and other places can achieve fast and thoughtful after-sales service

Instruction-1500 Split Single-Sided Glove Box
